    500kg Loading AGV Guided Vehicle , QR Code Navigation AGV Compatible With WMS

    Driverless AGV Warehouse Automation QR Code Navigation Intralogistics Solution


    1. Product Description:


    This Inertial guide AGV is also well known as Order Picking AGV widely used in warehouses, especially for online retailer industry. With the differential servo driving motors and QR codes on the ground as landmarks, this type of AGV can reach higher stopping accuracy and travel speed than other types. Also, it requests less spaces due to the free spinning function.


    2. Specifications:


    Product nameQR Code Inertial Navigation AGV
    ModelBFJ850-320V2

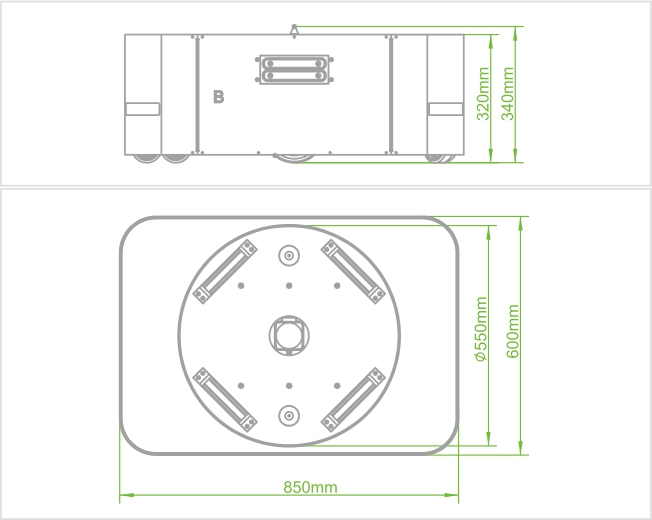

    DimensionsL850*W600*H320(mm)
    Load capacity500kg(Or customizing)
    Minimum turning radius0,360°driving
    GuidanceInertial navigation and QR code correction
    Travel Directionforward and backward, rotate 360° in place, branch
    Travel speed0-1.2m/s
    Guiding accuracy±10mm
    Stopping accurac±10mm
    Communication availableWifi
    Driving modeTwo-wheel differential drive
    PowerDC48V
    Workable24 hours by optimizing automatic charging
    Ramp≤2°
    Typeroll platform type
    Charging methodautomatic charging
    BatteryLithium battery
    Life time≥10 years
    AlarmSound and visual
    Safety featuresFront obstacle sensor+mechanical bumper sensor
    Safety induction rangeDetecting range ≤3m, adjustable; Emergency braking distance: <20mm

    3. Characteristic:


    • high accuracy and speed, free mapping and routing
    • non-magnet guide line on the ground
    • less space requested
    • compatible with WMS for real time material position and situation.
