    Single Way Track AGV Automated Guided Vehicles , AGV Material Handling For Automotive Industry

    Intralogistics Automated Guided Vehicle Single Way Track Guidance Tunnel Type for Automotive Industry


    1. Product Description:

    The unidirectional tunnel AGV lurks under the trolley and uses the tow bar to automatically lift, hook or drop the trolley. Compact structure and flexible running, it is widely used in many industries such as automobiles, home appliances, electrical appliances, food industry and electronics.



    2. Application:

    Widely used for intralogistics solution for loading and uploading materials in Automotive Industry, Electronic Industry, etc.


    3. Specifications:

    Product nameIntralogistics Automated Guided Vehicle Single Way Track Guidance Tunnel Type for Automotive Industry
    ModelQF1400V2

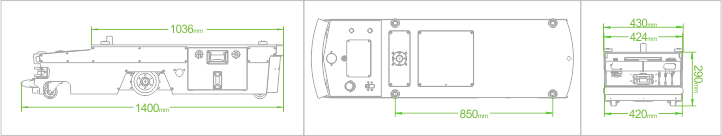

    DimensionsL1400*W420*H290(mm)
    Load capacity500Kg-1000kg
    Minimum turning radiusmin 600mm
    GuidanceMagnetic guidance
    Travel DirectionForward, turn left and right, branch
    Travel speed0-45m/min(Or customizing))
    Guiding accuracy±10mm
    Stopping accurac±10mm
    Communication availableRF / Wifi
    Driving modeDifferential driving
    PowerDC24V
    Workable24 hours by optimizing automatic charging
    Ramp≤2°
    Charging methodManual charging / automatic charging
    TypeTunnel Tractor type
    BatteryLead acid battery / lithium battery
    Life time≥10 years
    AlarmSound and visual
    Safety featuresFront obstacle sensor+mechanical bumper sensor
    Safety induction rangeDetecting range ≤3m, adjustable; Emergency braking distance: <20mm

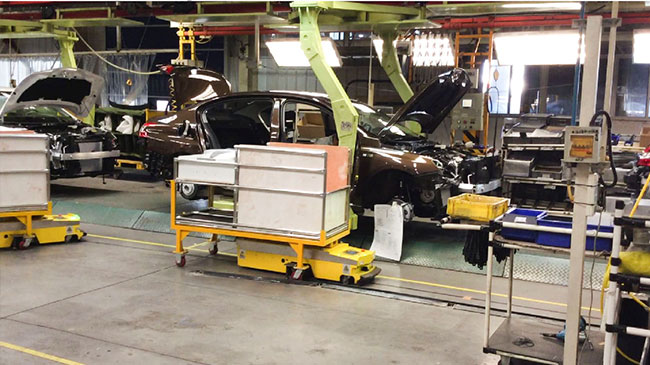

    4. Photo:

    Quality Single Way Track AGV Automated Guided Vehicles , AGV Material Handling For Automotive Industry for sale
